East End Gateway and Long Island Rail Road Concourse Renovation

This dramatic overhaul has transformed the infamously dark, overcrowded experience at Penn Station by expanding its concourses, improving wayfinding, and introducing its subterranean spaces to natural light.

Project Facts
  • Status Construction Complete
  • Completion Year 2020
  • Design Finish Year 2020
  • Size Building Height: 40 feet Building Gross Area: 75,000 square feet
  • Awards
    2021, SEAoNY Excellence in Structural Engineering Awards - Finalist, SEAoNY 2022, Structural Glass - Facades Award, USGlass Magazine 2021, Excellence in Structural Engineering, National Council of Structural Engineers Association
  • Collaborators
    AECOM Horton Lees Brogden Lighting Design (HLB) Via Collective Seele Schlaich Bergermann Partner G G Engineering Ltd WSP Designer Creative Source Duggal Visual Solutions Inc Skanska Construction
Project Facts
  • Status Construction Complete
  • Completion Year 2020
  • Design Finish Year 2020
  • Size Building Height: 40 feet Building Gross Area: 75,000 square feet
  • Awards
    2021, SEAoNY Excellence in Structural Engineering Awards - Finalist, SEAoNY 2022, Structural Glass - Facades Award, USGlass Magazine 2021, Excellence in Structural Engineering, National Council of Structural Engineers Association
  • Collaborators
    AECOM Horton Lees Brogden Lighting Design (HLB) Via Collective Seele Schlaich Bergermann Partner G G Engineering Ltd WSP Designer Creative Source Duggal Visual Solutions Inc Skanska Construction

Redesigning New York’s front door

SOM has played a central role in reimagining New York City’s Penn Station, the busiest train station in the Western Hemisphere and a hub for the Long Island Rail Road (LIRR), New Jersey Transit, Amtrak, and two subway lines. SOM’s work spans multiple blocks, from the adaptive reuse of the Farley Building into Moynihan Train Hall, down to the West End Concourse, through the renovated LIRR concourse, and out of the East End Gateway on Seventh Avenue. Together, the projects—which opened between 2017 and 2023—significantly relieve congestion and recapture the grandeur of rail travel to New York.

Lucas Blair Simpson © SOM

Marking the station’s entrance

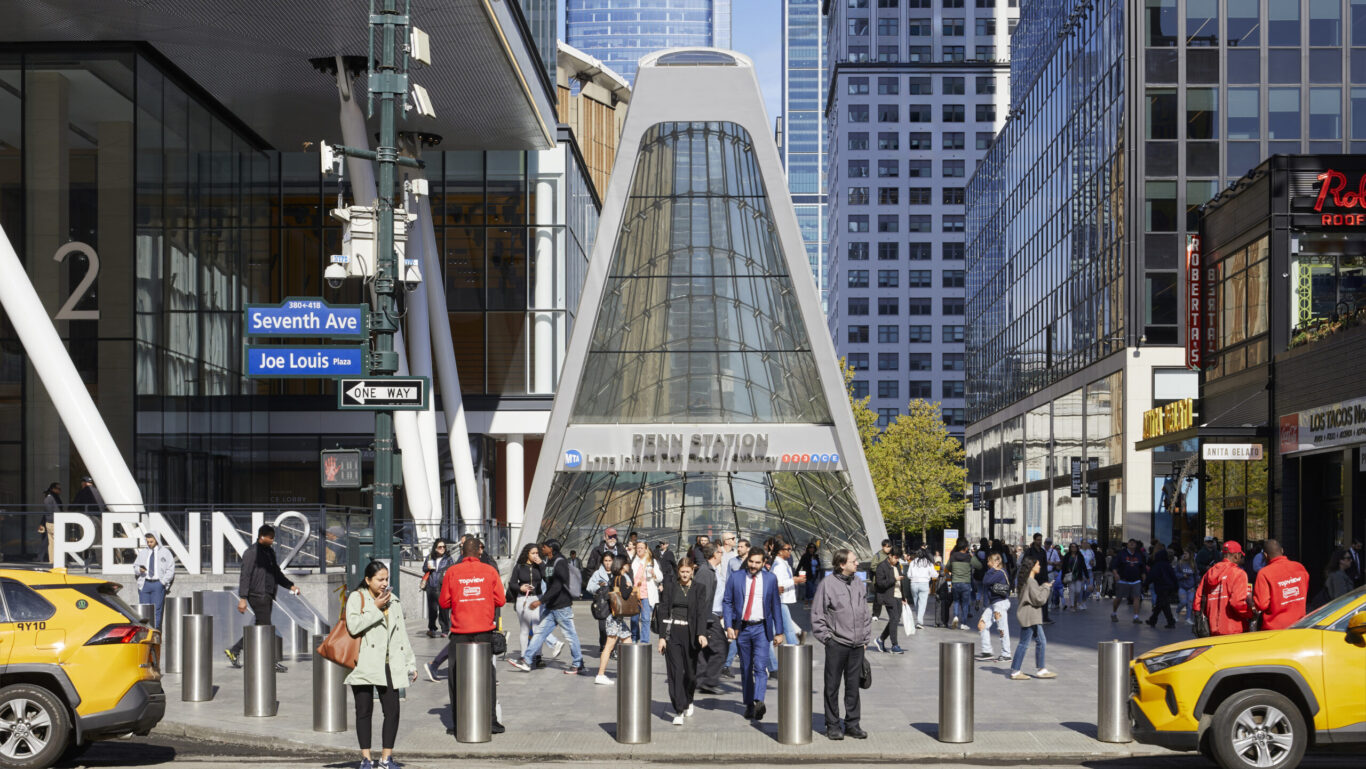

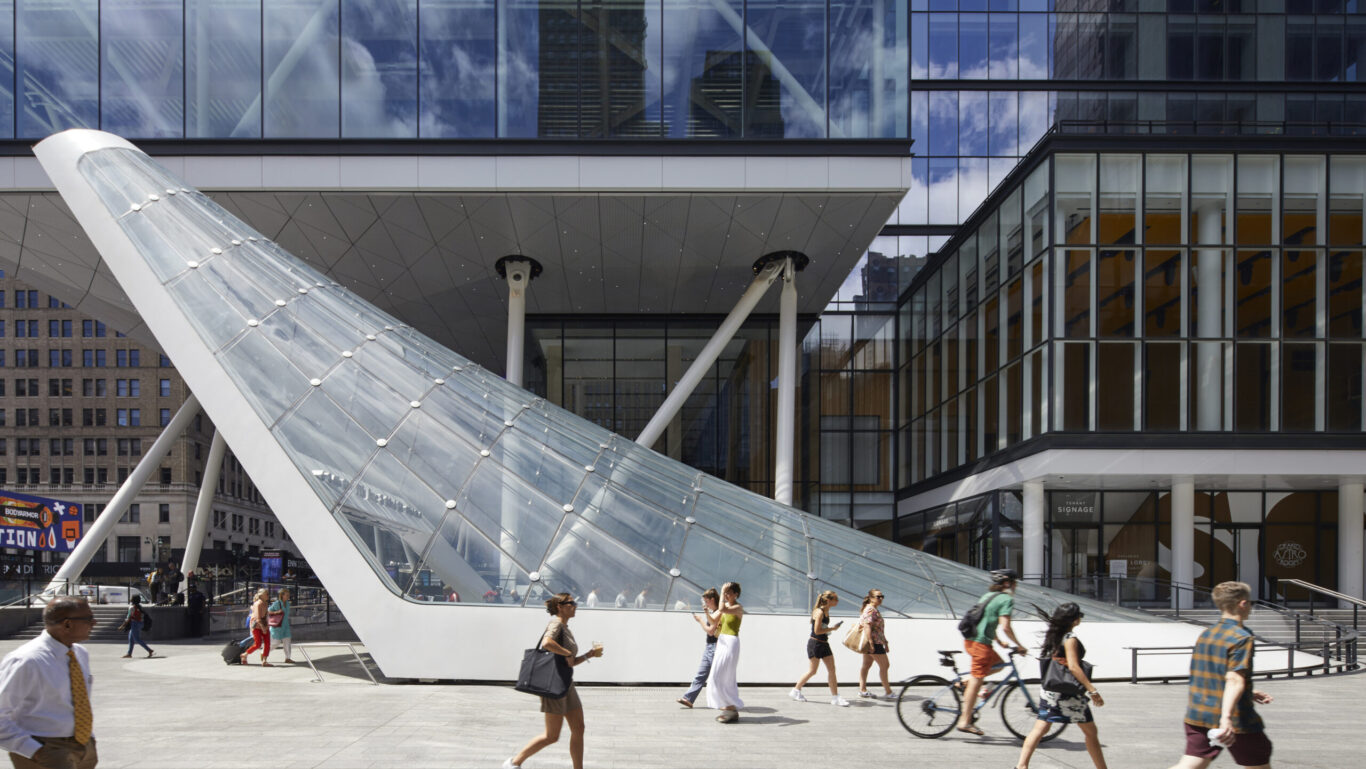

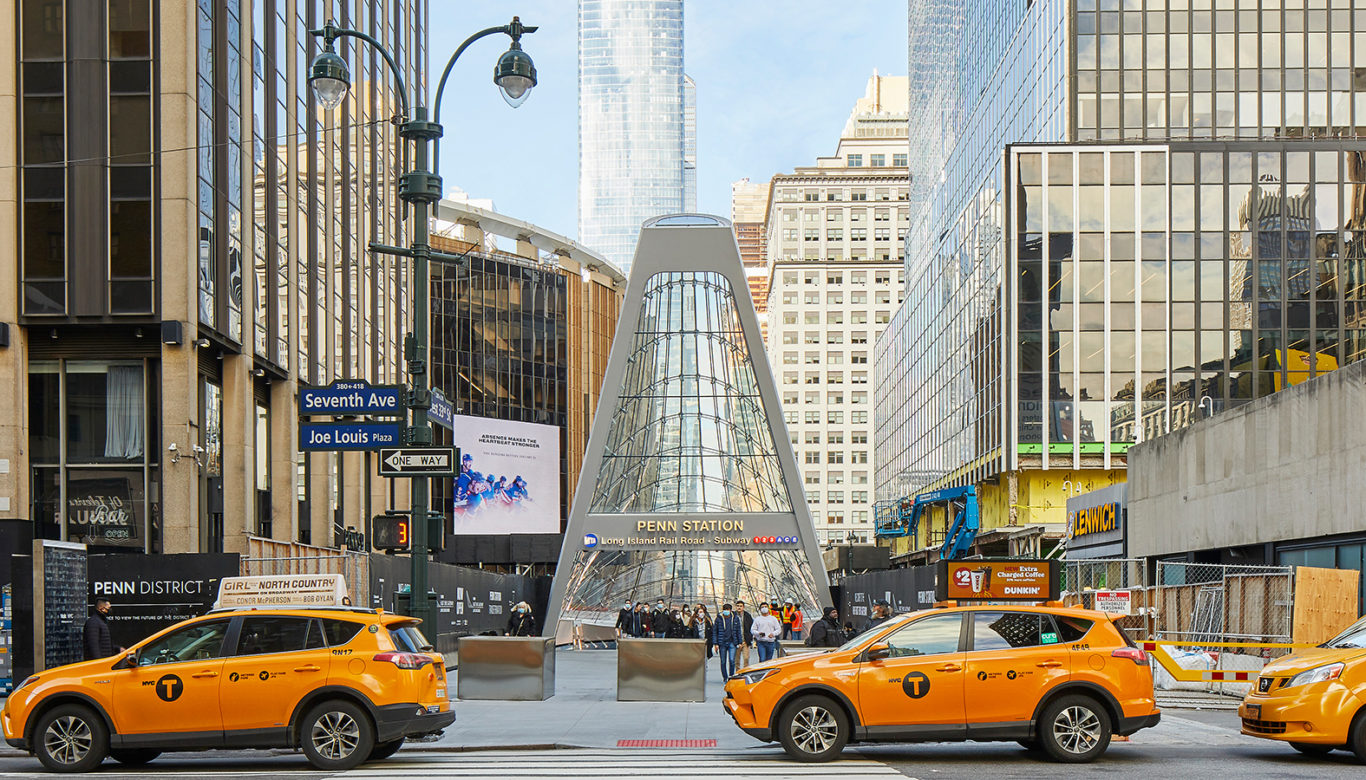

The East End Gateway opened on the final day of 2020, just hours before trains first rolled into Moynihan Train Hall. With its dramatic glass and steel canopy, this new entrance introduces natural light to the underground concourse for the first time since the demolition of the original Penn Station in the 1960s, and establishes a clear entrance to the station on Seventh Avenue.

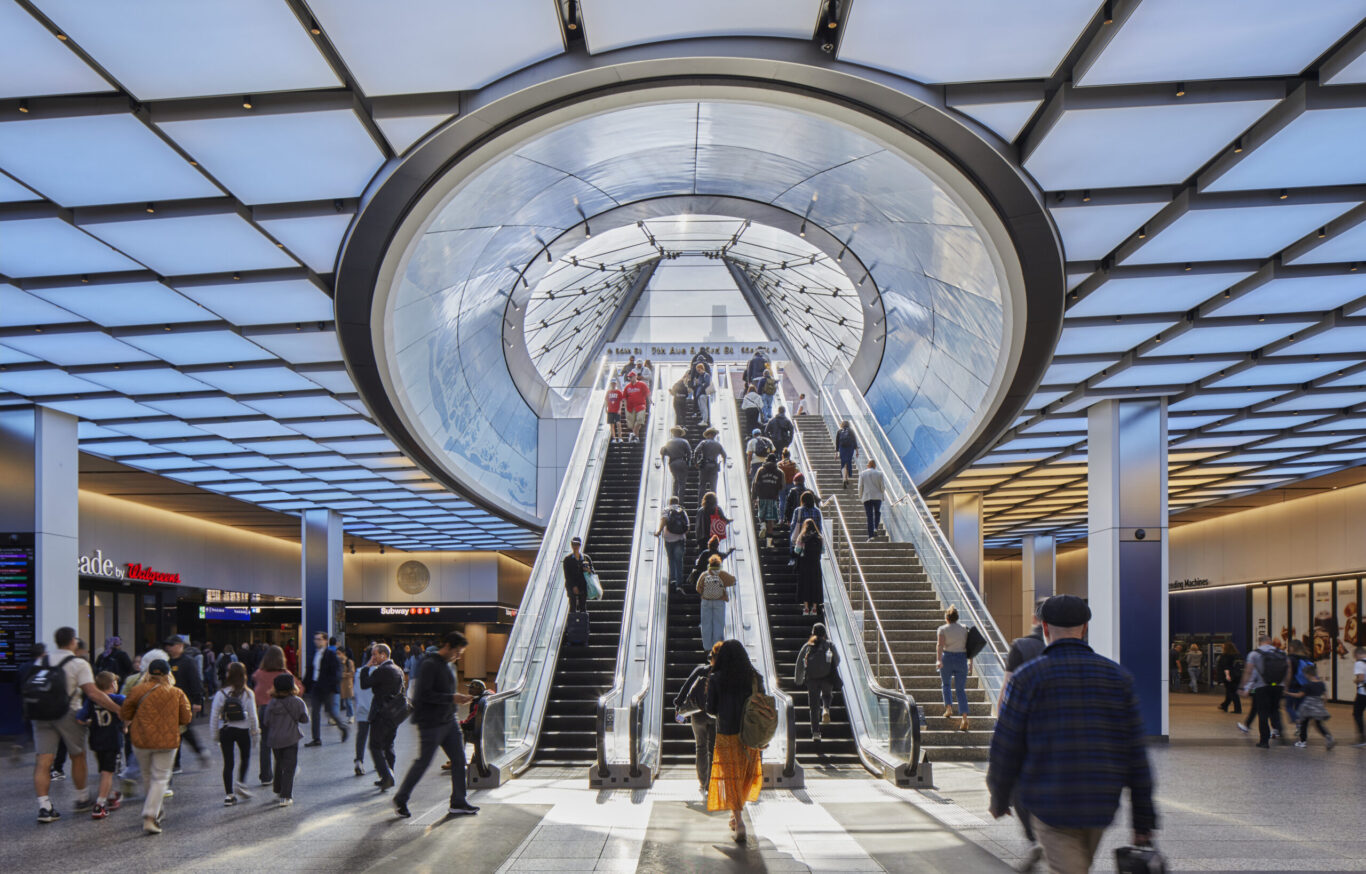

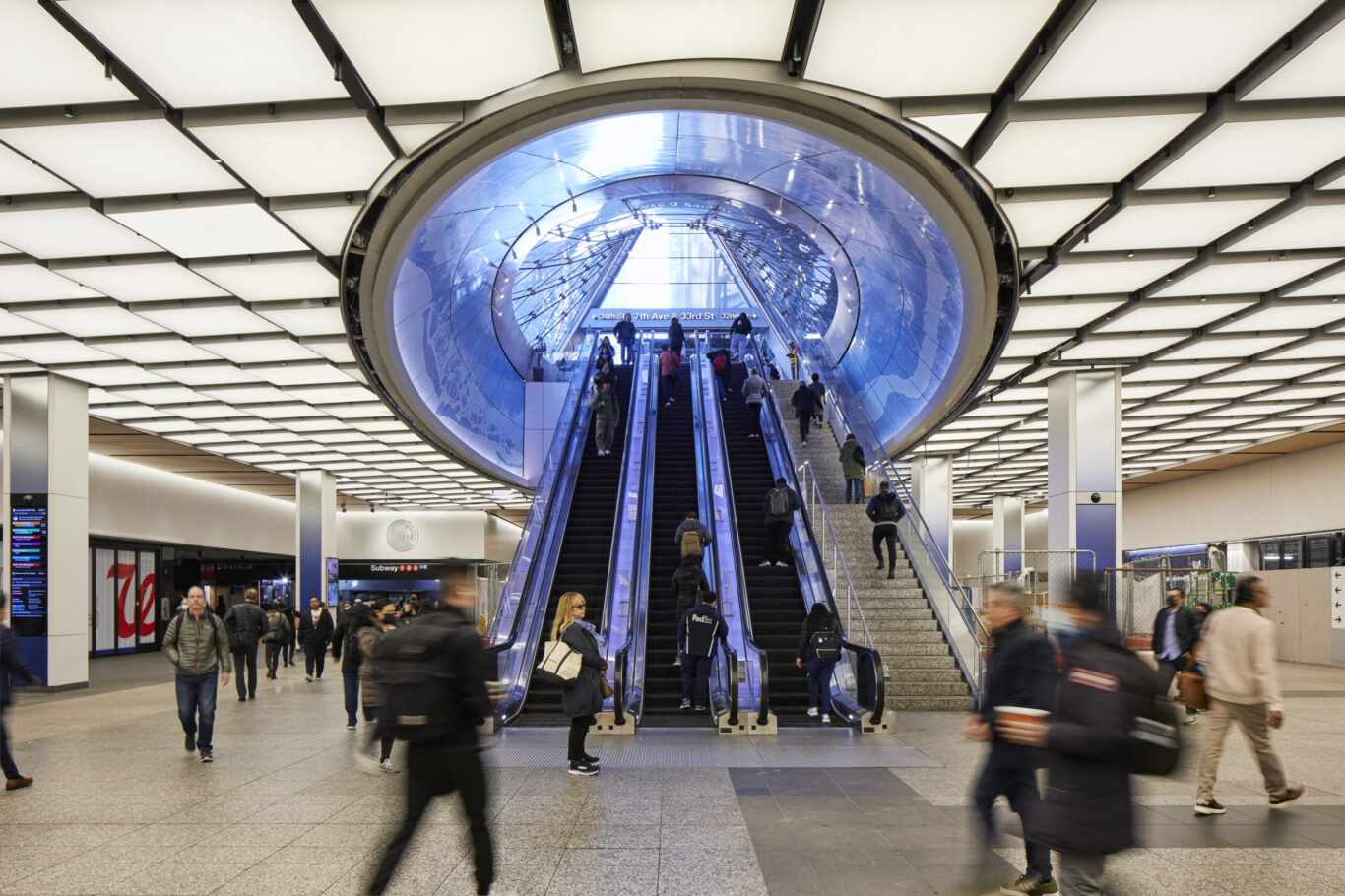

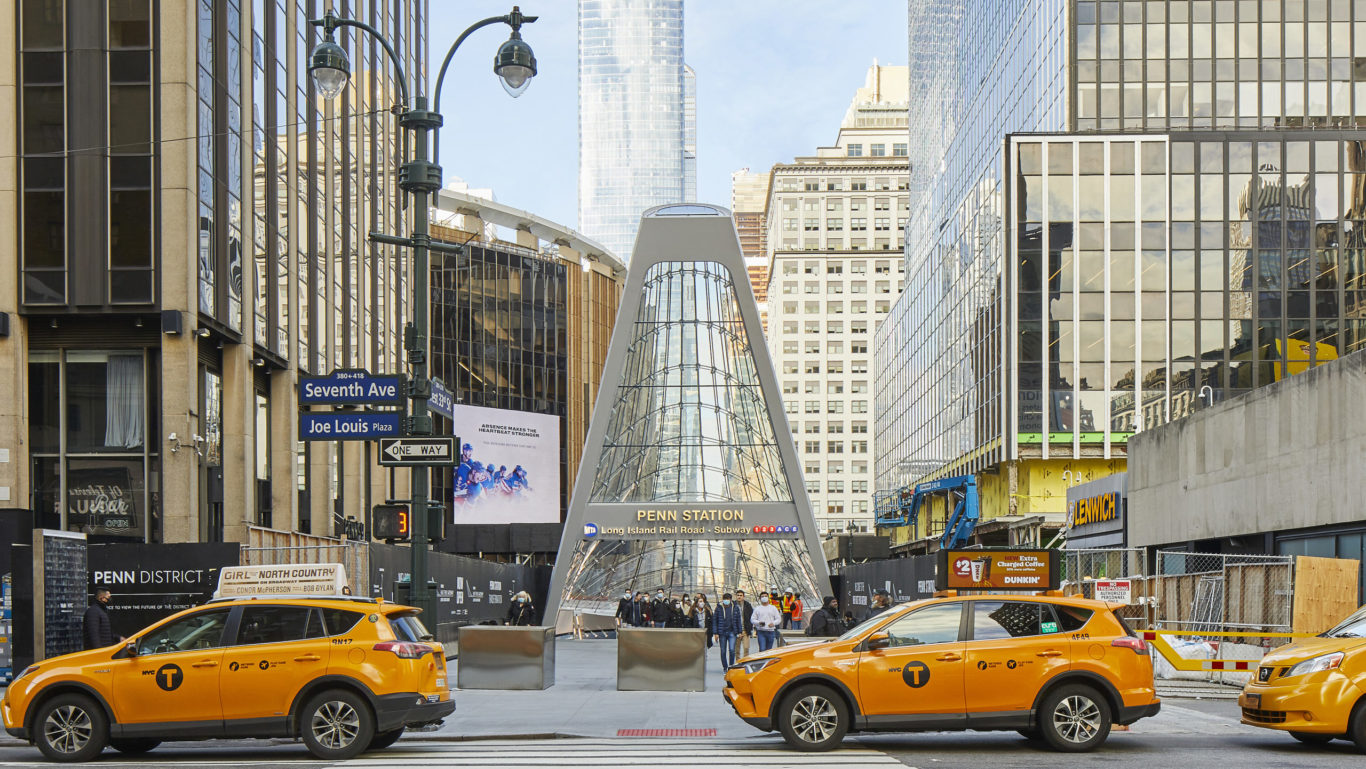

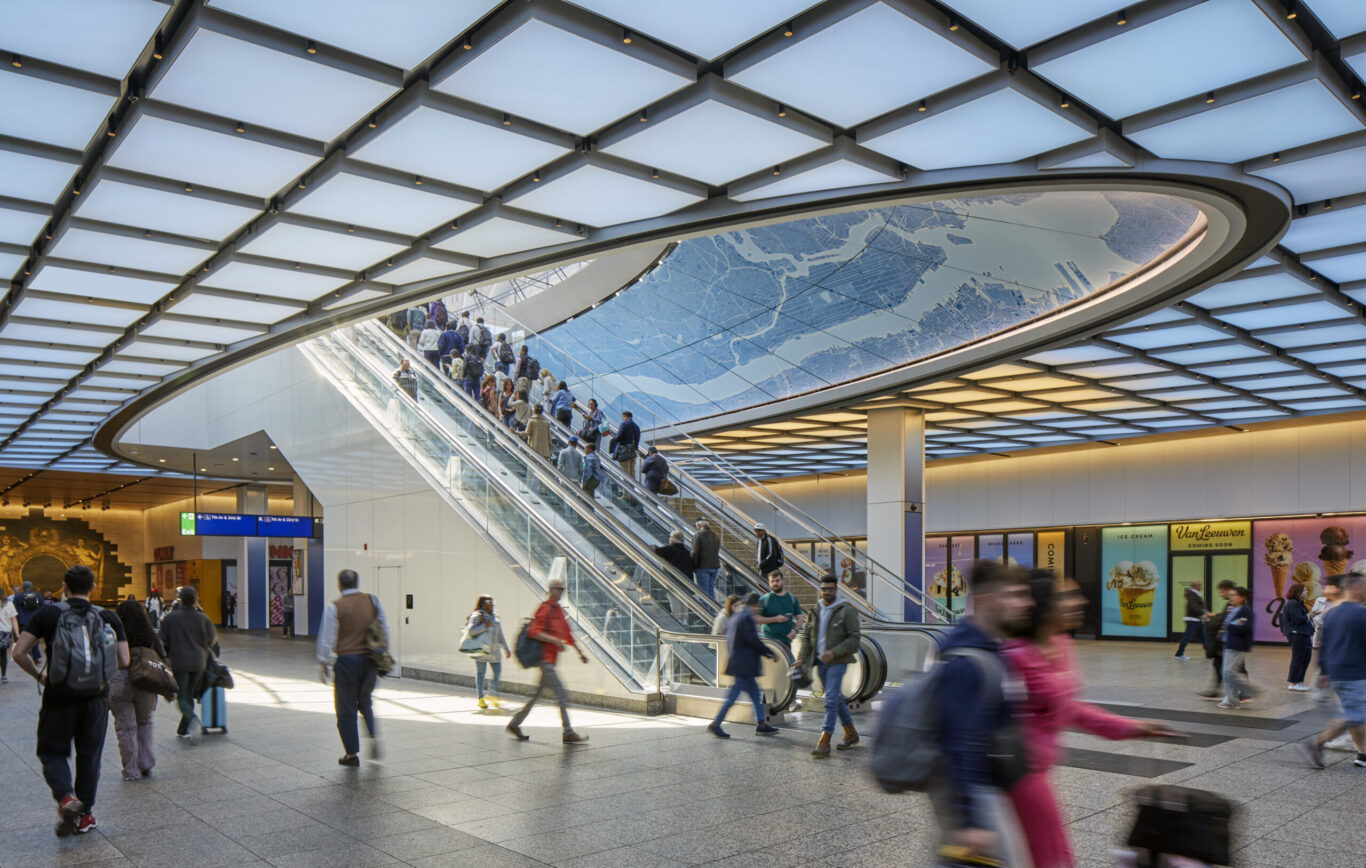

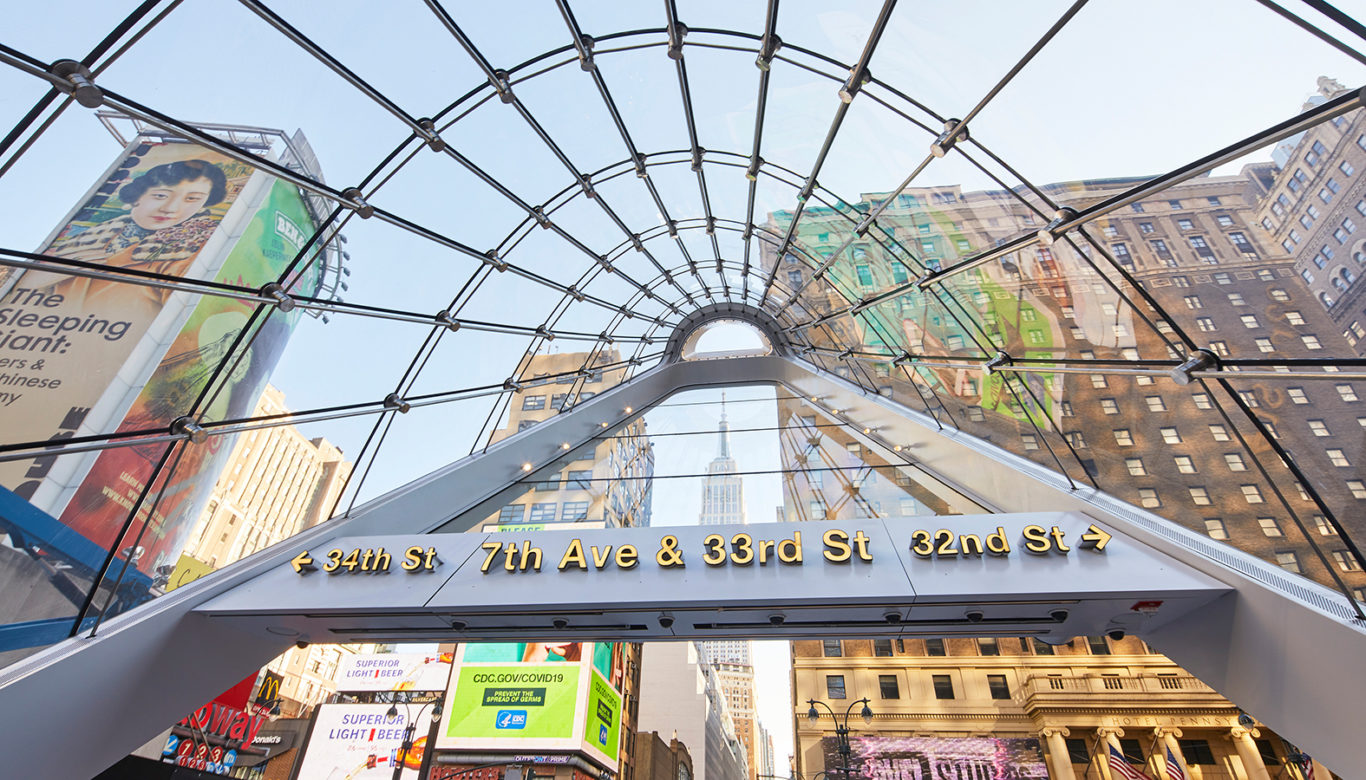

The gateway connects directly to the LIRR concourses from the street, and nearly doubles the vertical circulation capacity of this segment of the station with three escalators and a staircase. The entrance is set back 130 feet from the curb, making more sidewalk space for crowds and aligning directly with the Empire State Building to create views of the iconic landmark.

Lucas Blair Simpson © SOM

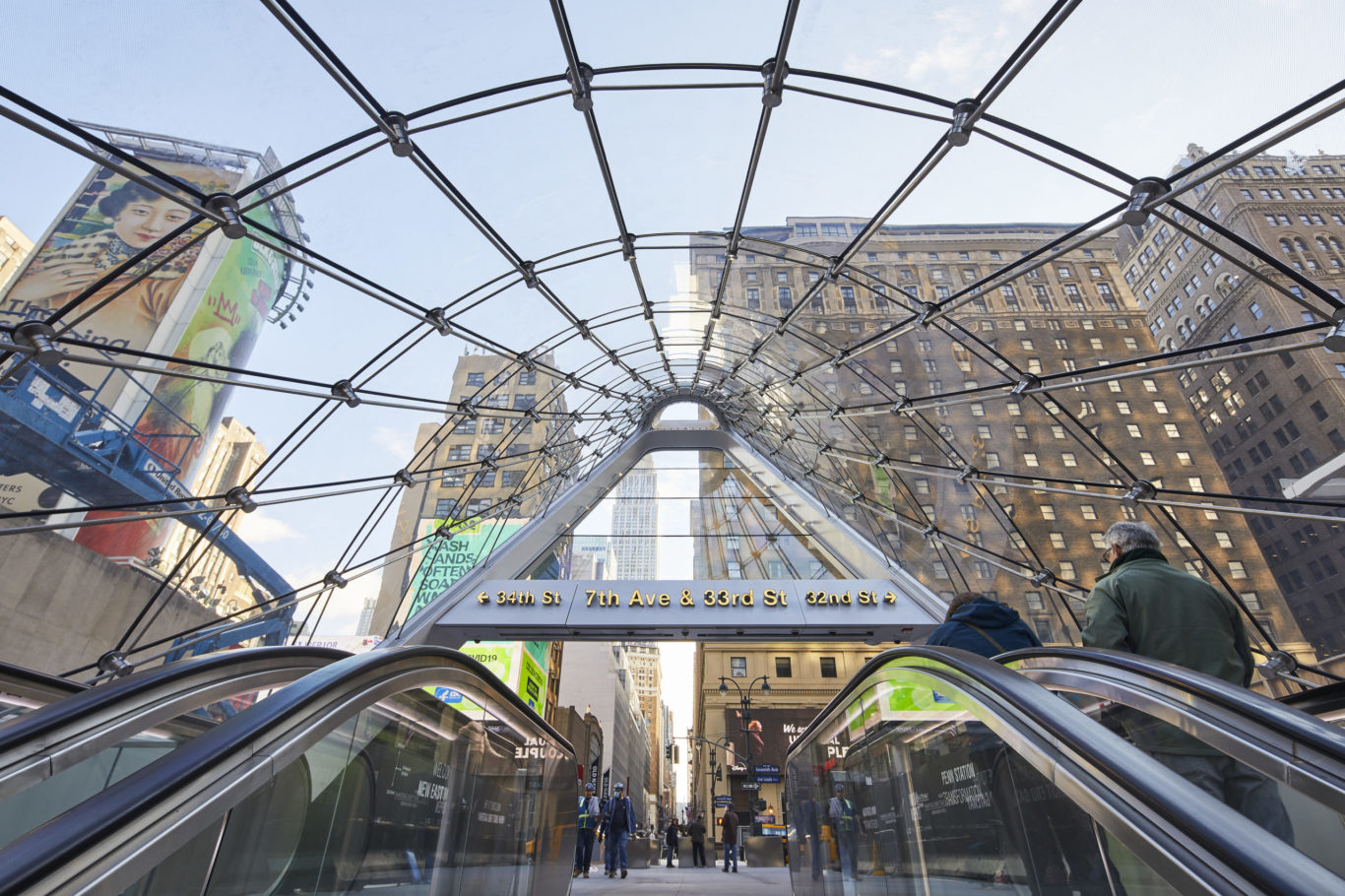

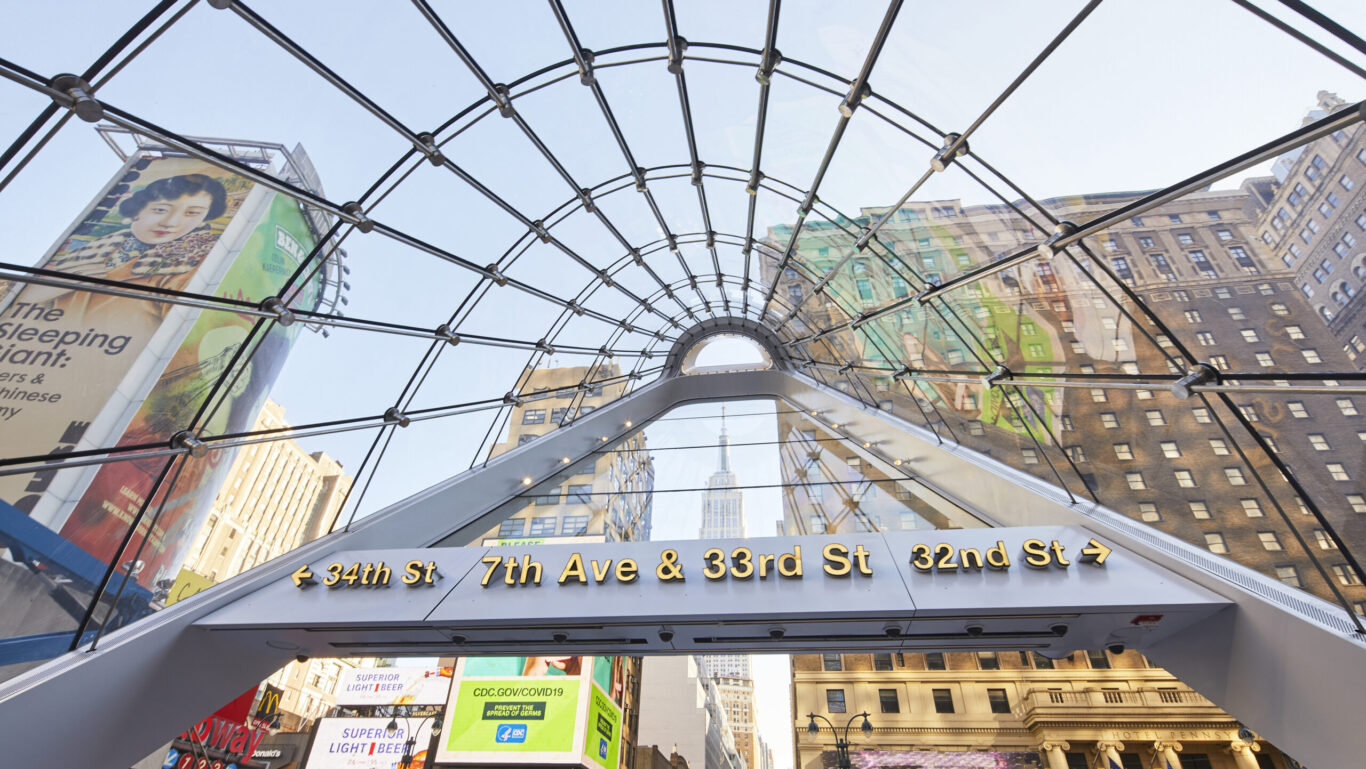

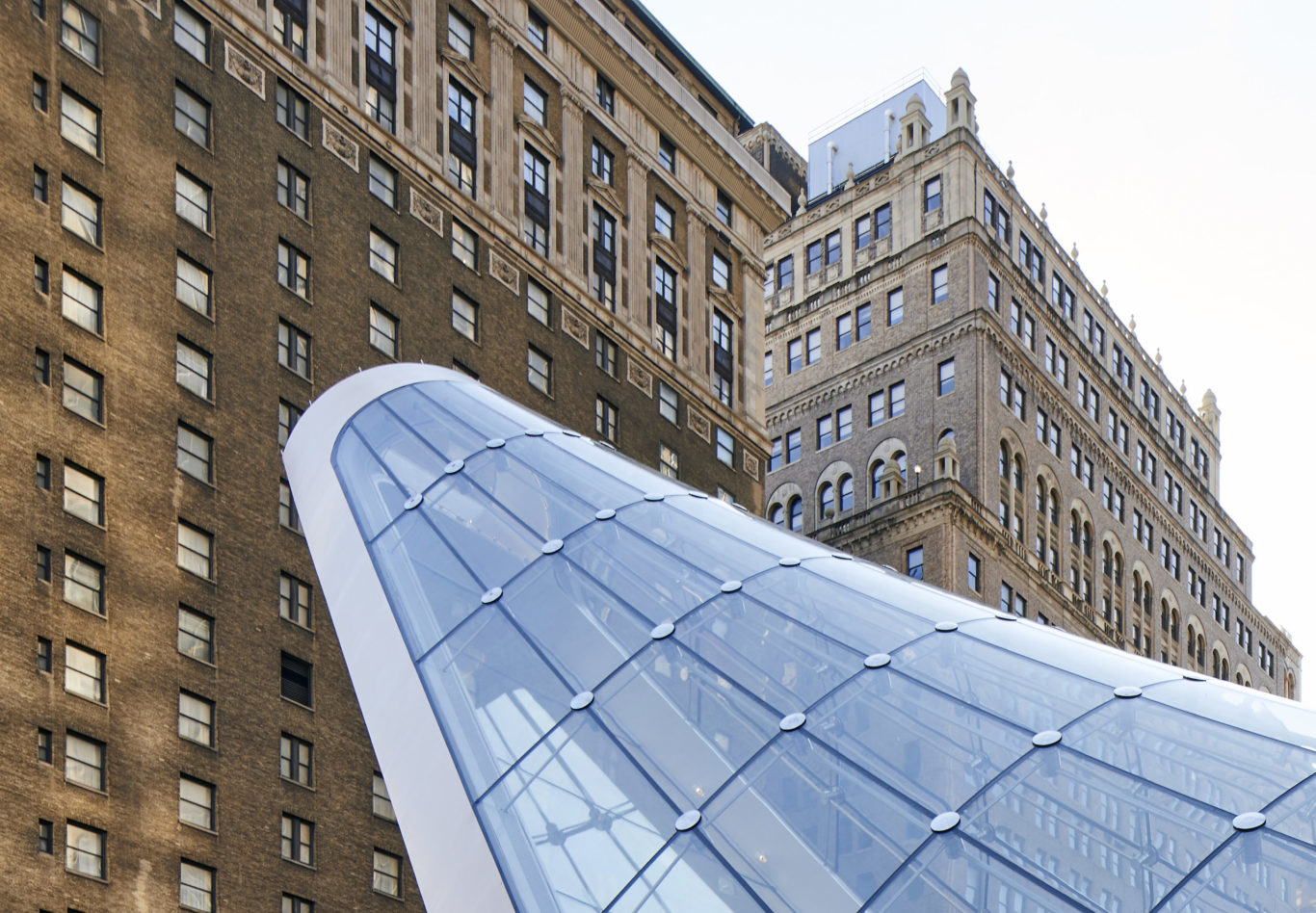

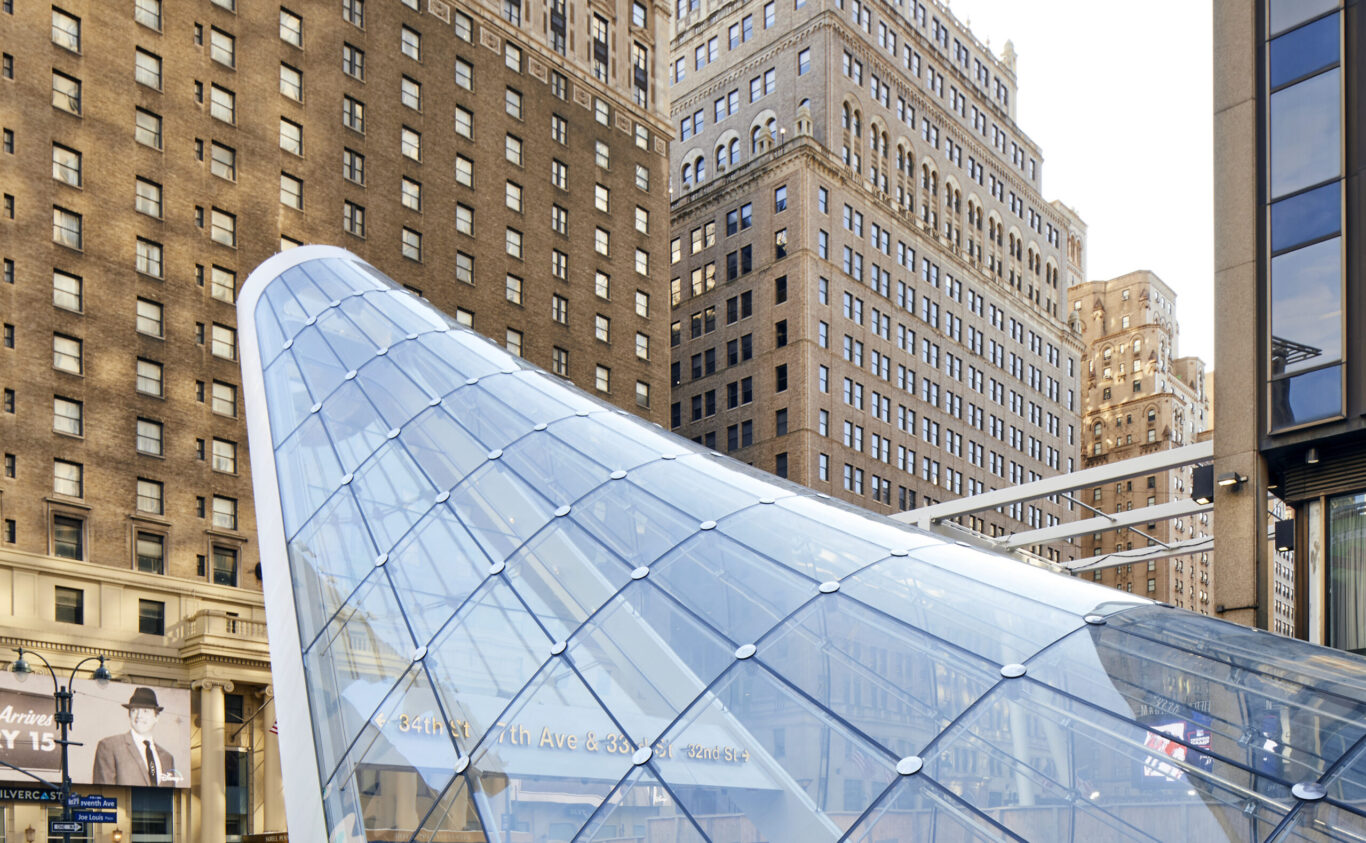

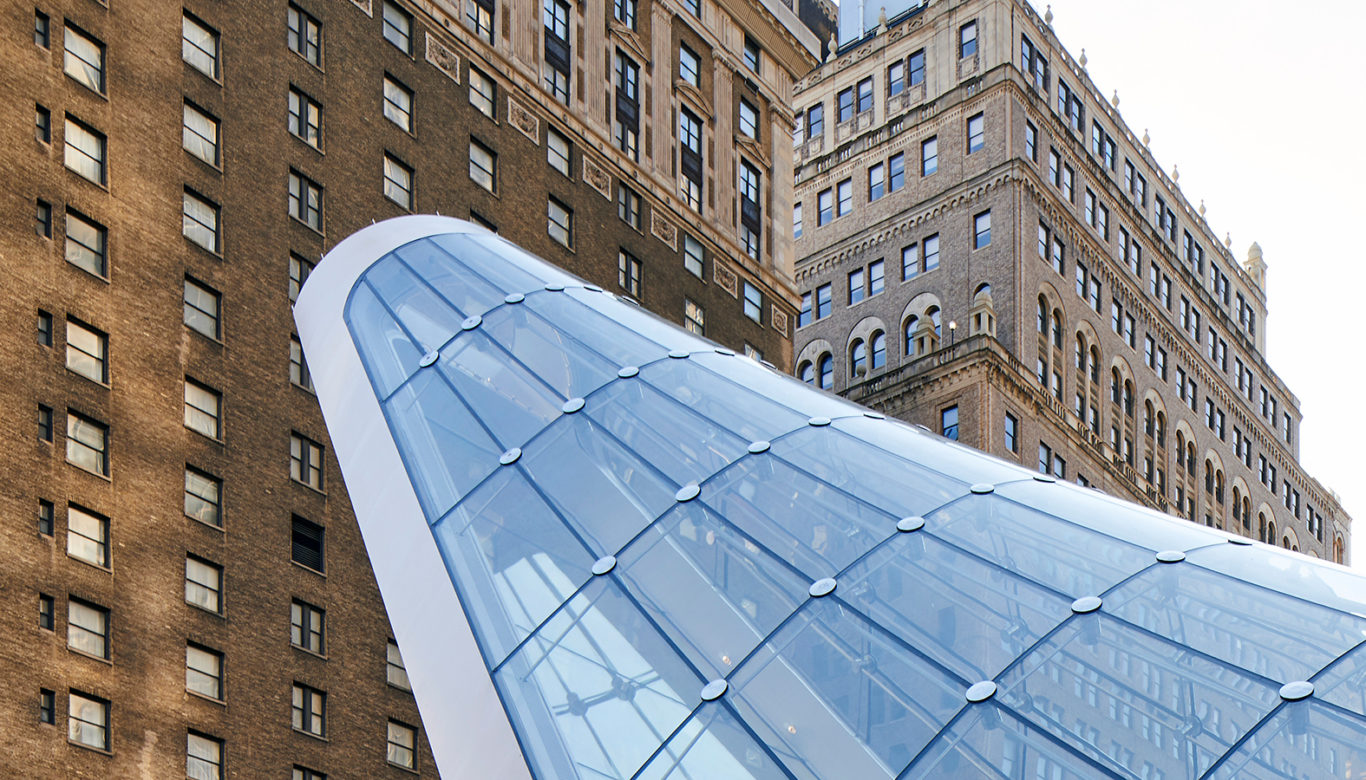

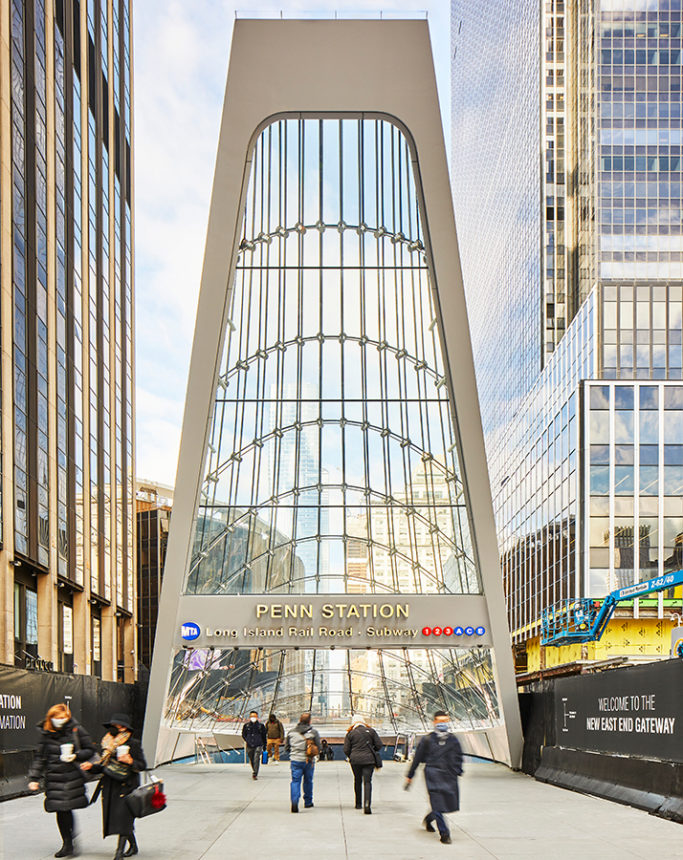

These views are framed by a monumental glass and steel canopy, which carries Moynihan Train Hall’s sky-lit aesthetic eastward. The structure, designed and built in collaboration with Skanska, AECOM, and Seele, rises in a gentle convex curve that reaches 40 feet above street level. Pre-tensioned steel cables support the smooth, high-performance glass enclosure. Underground, a map of New York State rings the steel spandrels and situates travelers within the region.


Revamping the LIRR concourse

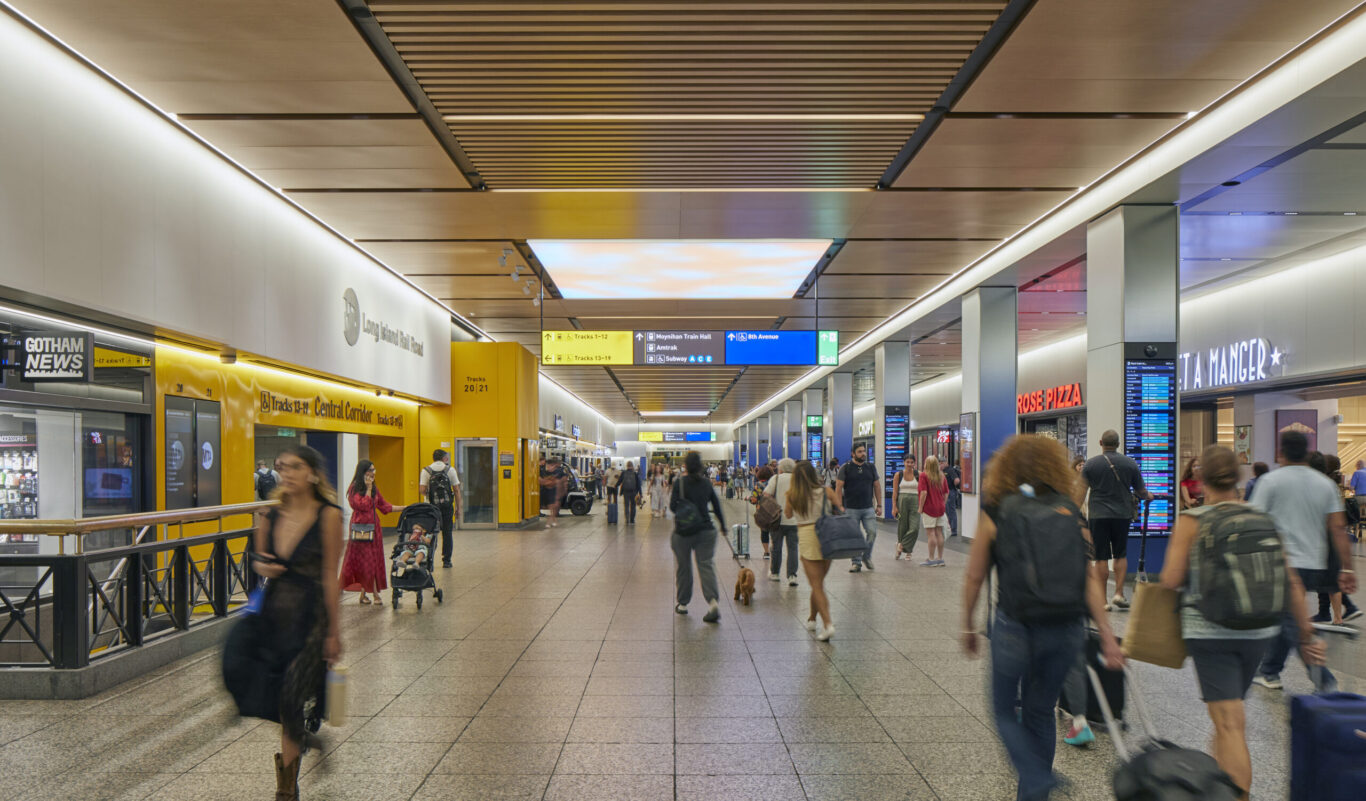

The renovated concourse, a previously cramped corridor with a coved ceiling, has been nearly doubled in width, from 30 to 57 feet. The ceiling, sitting right below a newly rebuilt block on 33rd Street, now reaches its upper limits at 18 feet, right below the mechanical systems running under the pavement. These improvements have relieved crowding at the Western Hemisphere’s busiest transit hub, and created the space for new signage that makes clear wayfinding at the station now, finally, a possibility.

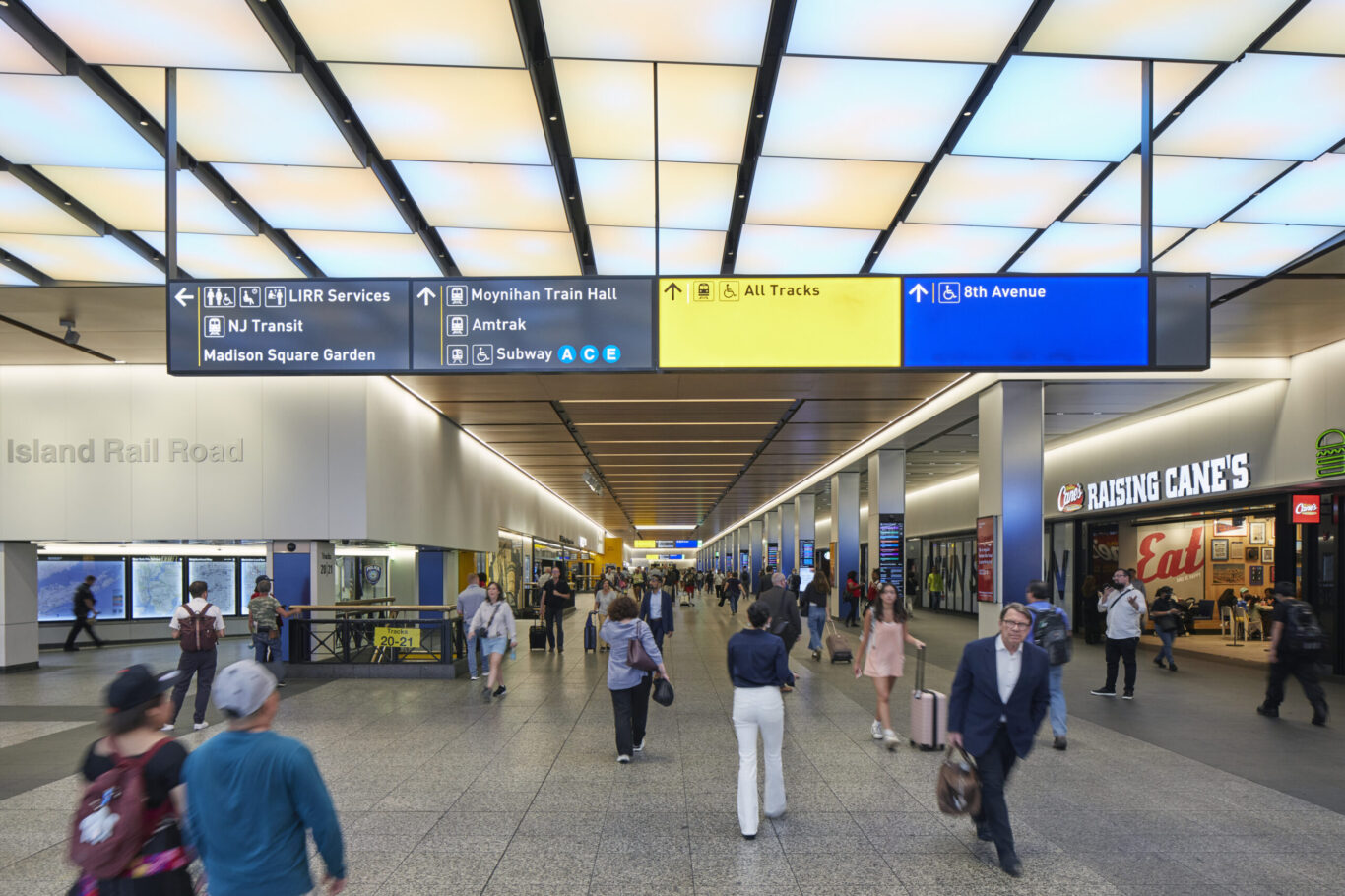

The signage echoes the aesthetic SOM created for Moynihan Train Hall and the West End Concourse, where color is crucial. Bright yellows identify the tracks, and new video screens across a long series of pillars keep passengers updated no matter where they stand. Green exit signs indicate the egress points, and additional signage throughout the concourse points in the direction of the station’s two subway lines. The renovation also improves safety and ADA access from the street to the concourse with a new elevator on 33rd Street, as well as from the concourse to the platforms with rebuilt stairs and handrails, new enclosures for fire protection, and a replacement elevator.

© Lucas Blair Simpson | SOM
© Lucas Blair Simpson | SOM

Creating a new look

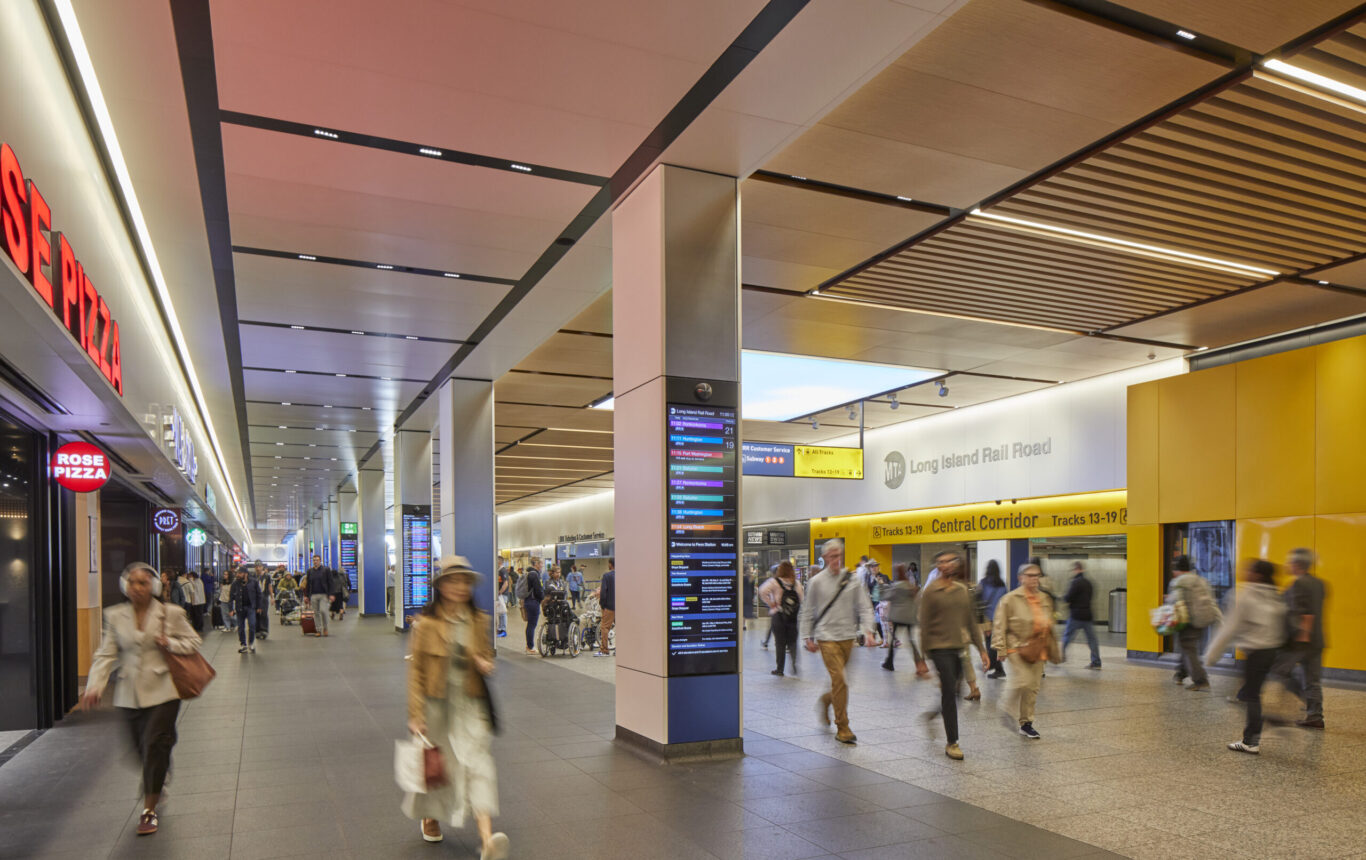

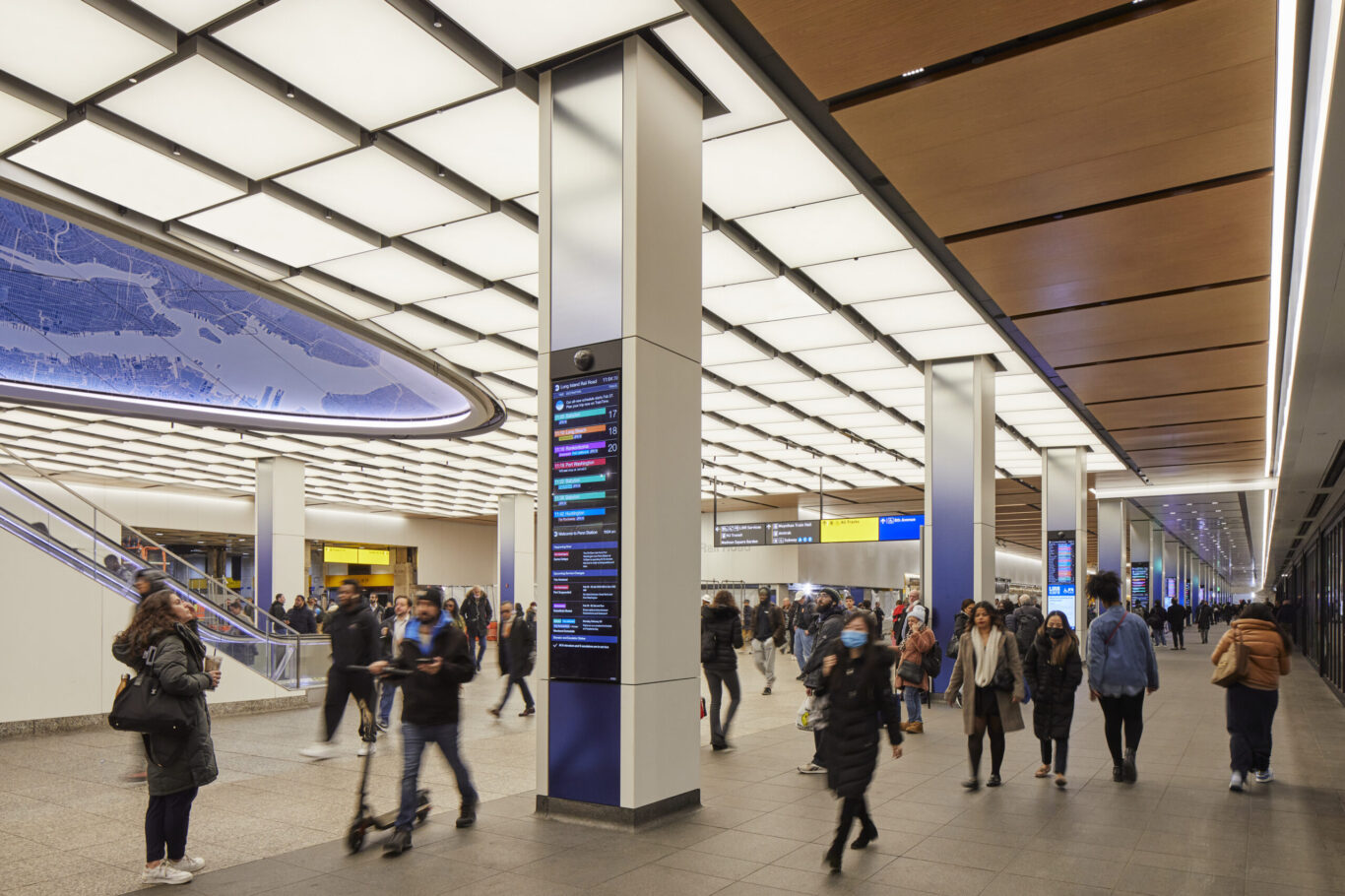

The walls of the concourse mix new materials with preserved marble and terracotta surfaces. The yellow elements are all made of porcelain, and the white finishes at the top of the walls are stone. The storefronts were pushed back to widen the concourse, and the pillars that previously stood inside have been re-clad: Two faces on every column now feature mirror-backed glass colored in blue at the bottom until rising, in a gradually changing gradient, to a mirror at the top. The shade of blue is the same color that is used in Moynihan Train Hall, again creating a sense of continuity.

Overhead, the ceiling integrates acoustic baffles and lighting. Metal panels clad the ceiling in front of the stores. Translucent panels, backlit by LED lighting, indicate the concourse’s intersections, where commuters can turn to get to the tracks. Toward Seventh Avenue, the ceiling surrounding the East End Gateway is designed almost entirely in these backlit panels. Across this space, each panel is flat and tilted, mimicking the geometry of Moynihan Train Hall’s skylight.
