This 600-foot-long extension to the High Line, taking the form of two pedestrian bridges, will create one, continuous pathway between Moynihan Train Hall, Manhattan West, and the High Line.

Project Facts
  • Status Construction In Progress
  • Completion Year 2023
  • Design Finish Year 2021
  • Size Site Area: 72,870 square feet Building Height: 45 feet Building Gross Area: 13,000 square feet
  • Collaborators
    James Corner Field Operations WSP Buro Happold Consulting Engineers Tillotson Design Associates Thornton Tomasetti DVS Security Pentagram Mueser Rutledge Consulting Engineers
Project Facts
  • Status Construction In Progress
  • Completion Year 2023
  • Design Finish Year 2021
  • Size Site Area: 72,870 square feet Building Height: 45 feet Building Gross Area: 13,000 square feet
  • Collaborators
    James Corner Field Operations WSP Buro Happold Consulting Engineers Tillotson Design Associates Thornton Tomasetti DVS Security Pentagram Mueser Rutledge Consulting Engineers

Connecting Midtown West

The High Line Moynihan Connector marks an important chapter in the decade-long evolution of Midtown West in New York City. Between Penn Station, Moynihan Train Hall, Manhattan West, and Hudson Yards, the neighborhood has emerged as a mixed-use destination knit together by a series of civic spaces that will now be connected to the High Line—one of the most important public spaces and pedestrian paths in Manhattan.

The project forms the final link in a chain of pathways running west from Penn Station to Hudson Yards, and south along the 1.45-mile High Line to the West Village. The seamless, fully accessible connector will provide a dedicated pedestrian space, away from the heavily trafficked area near the entrance to the Lincoln Tunnel.

© SOM, JCFO | Miysis

Elevating the pathway

Designed and engineered by SOM, in collaboration with landscape architect James Corner Field Operations, and led by the Friends of the High Line, Empire State Development and Brookfield Properties, the Connector is composed of two bridges running above Dyer Avenue on West 30th Street.

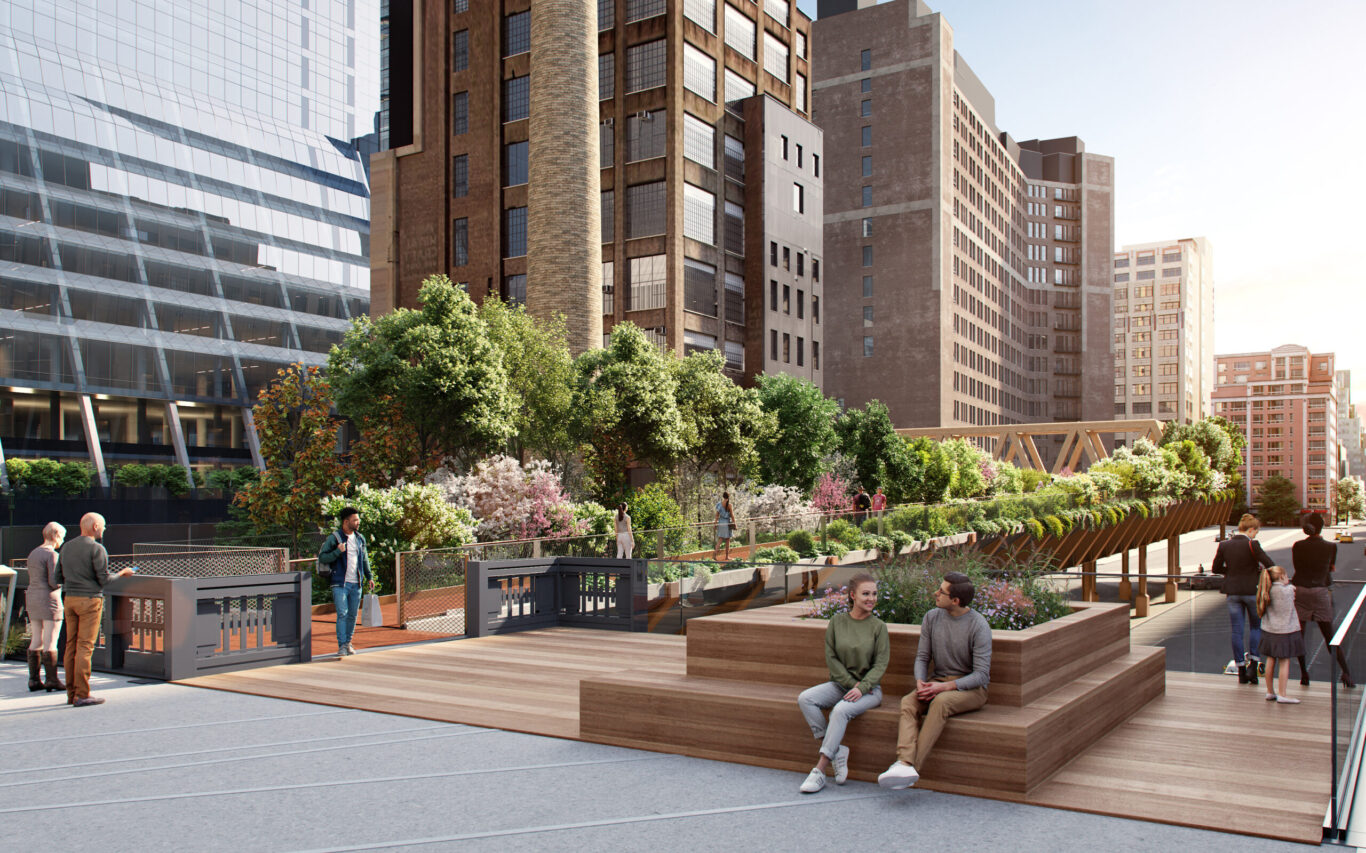

Upon exiting Moynihan Train Hall, visitors and commuters will cross Ninth Avenue and enter Manhattan West’s 2.6-acre public plaza. On the south side of Manhattan West at West 31st Street, where the public space rises a full floor above the street and culminates at Magnolia Court, pedestrians will enter the Timber Bridge, which will run the length of Dyer Avenue. They will then turn 90 degrees to enter the tree-lined Woodland Bridge along 30th Street, which leads directly to the Spur of the High Line.

Creating the two bridges

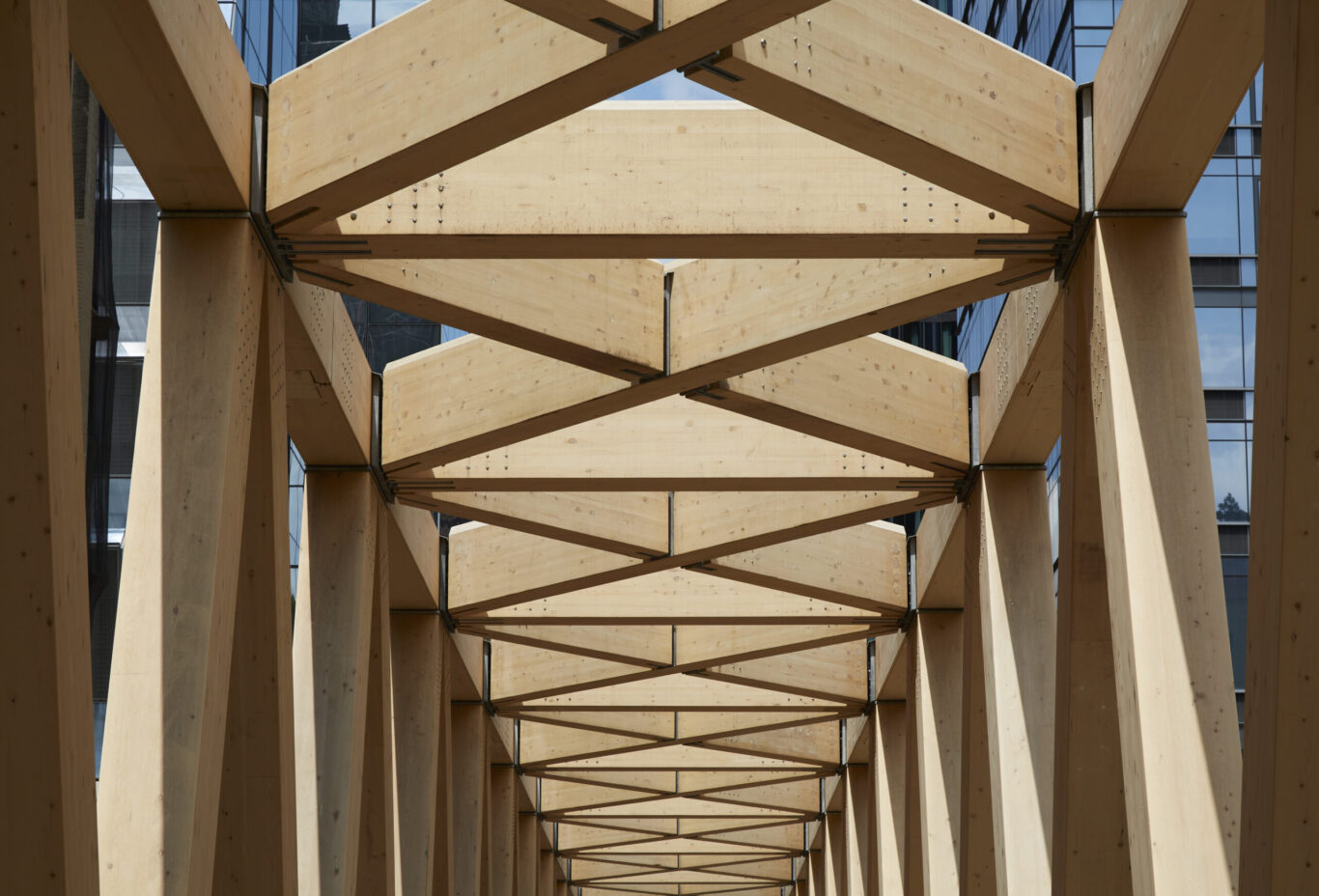

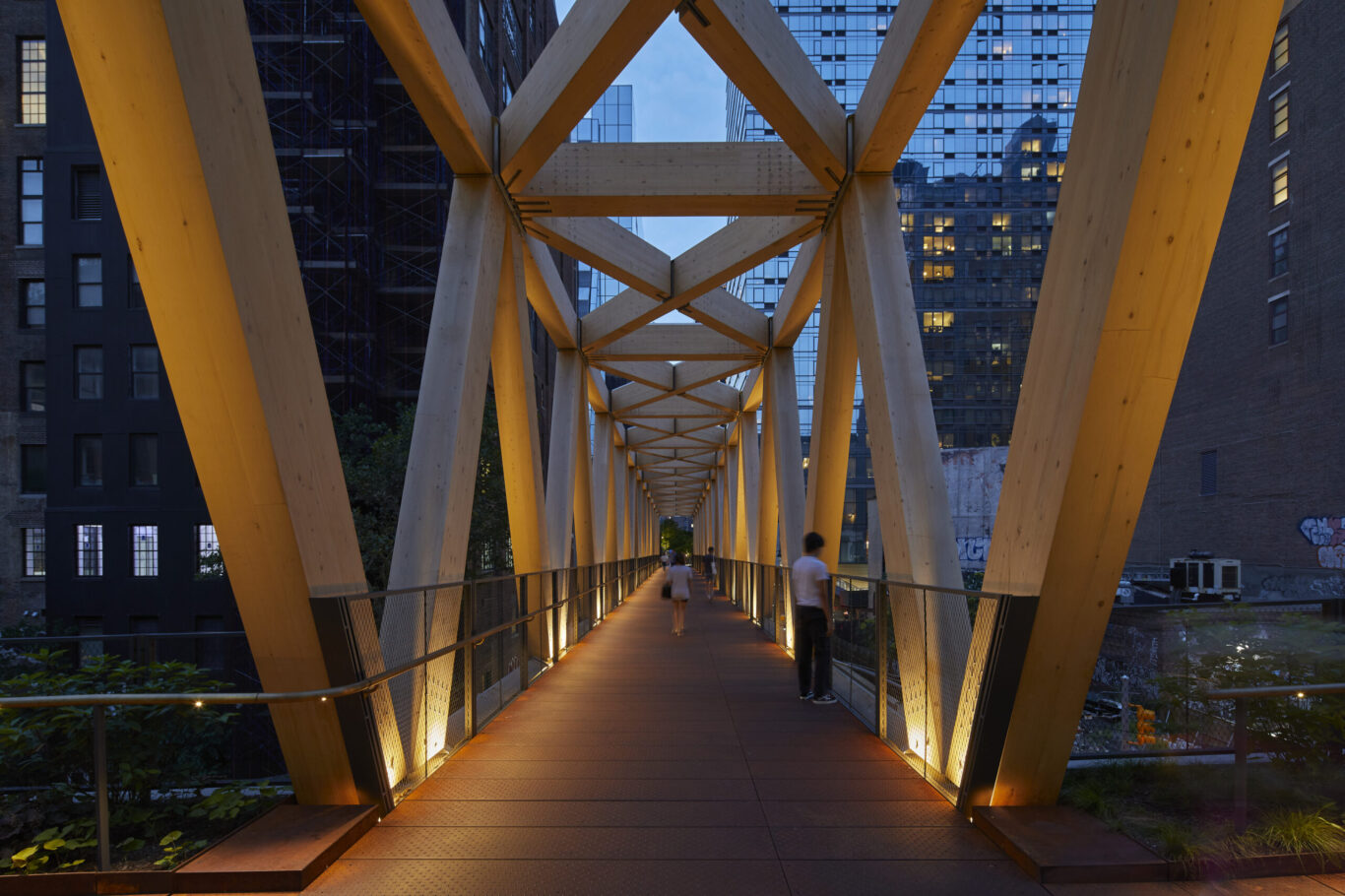

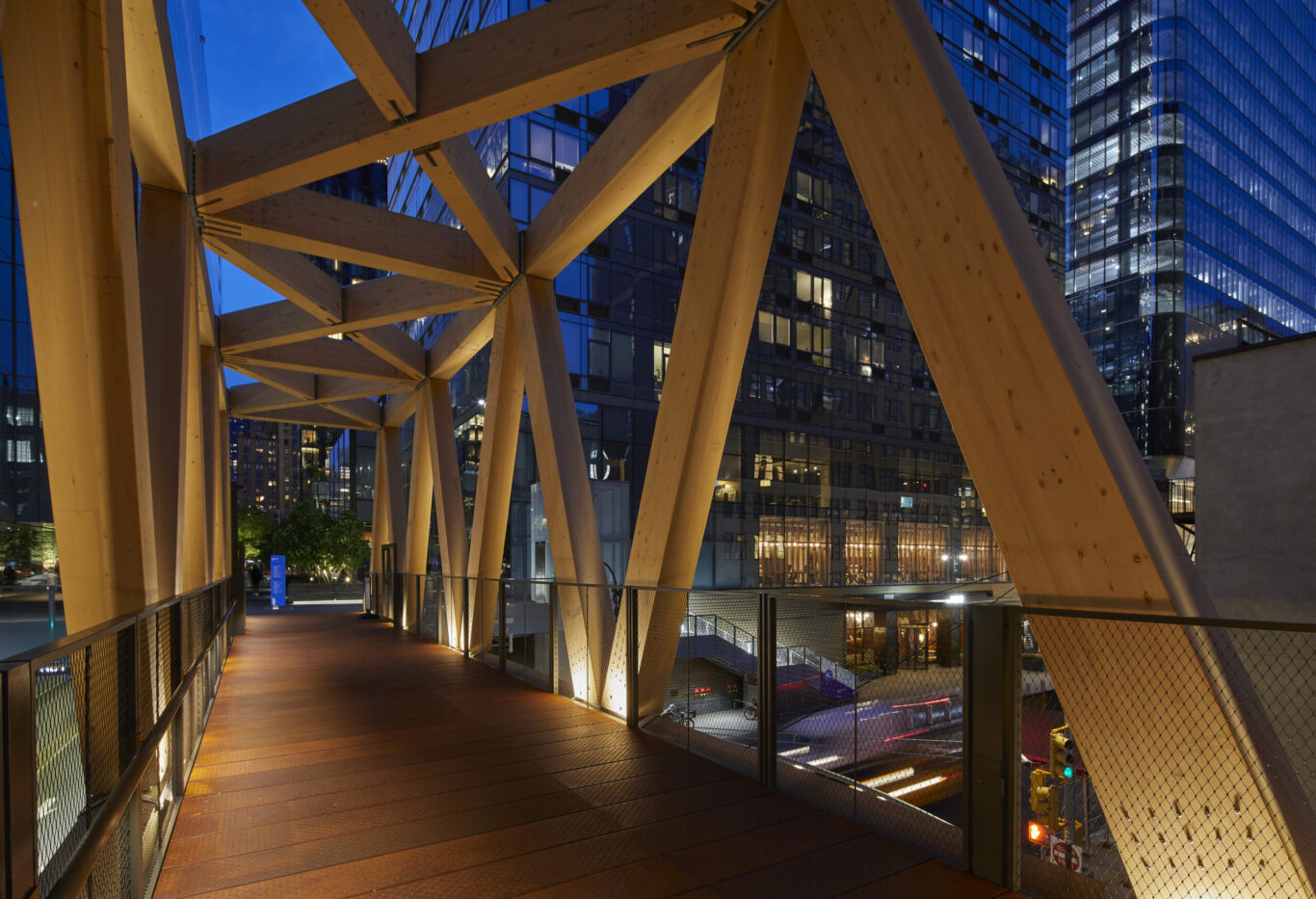

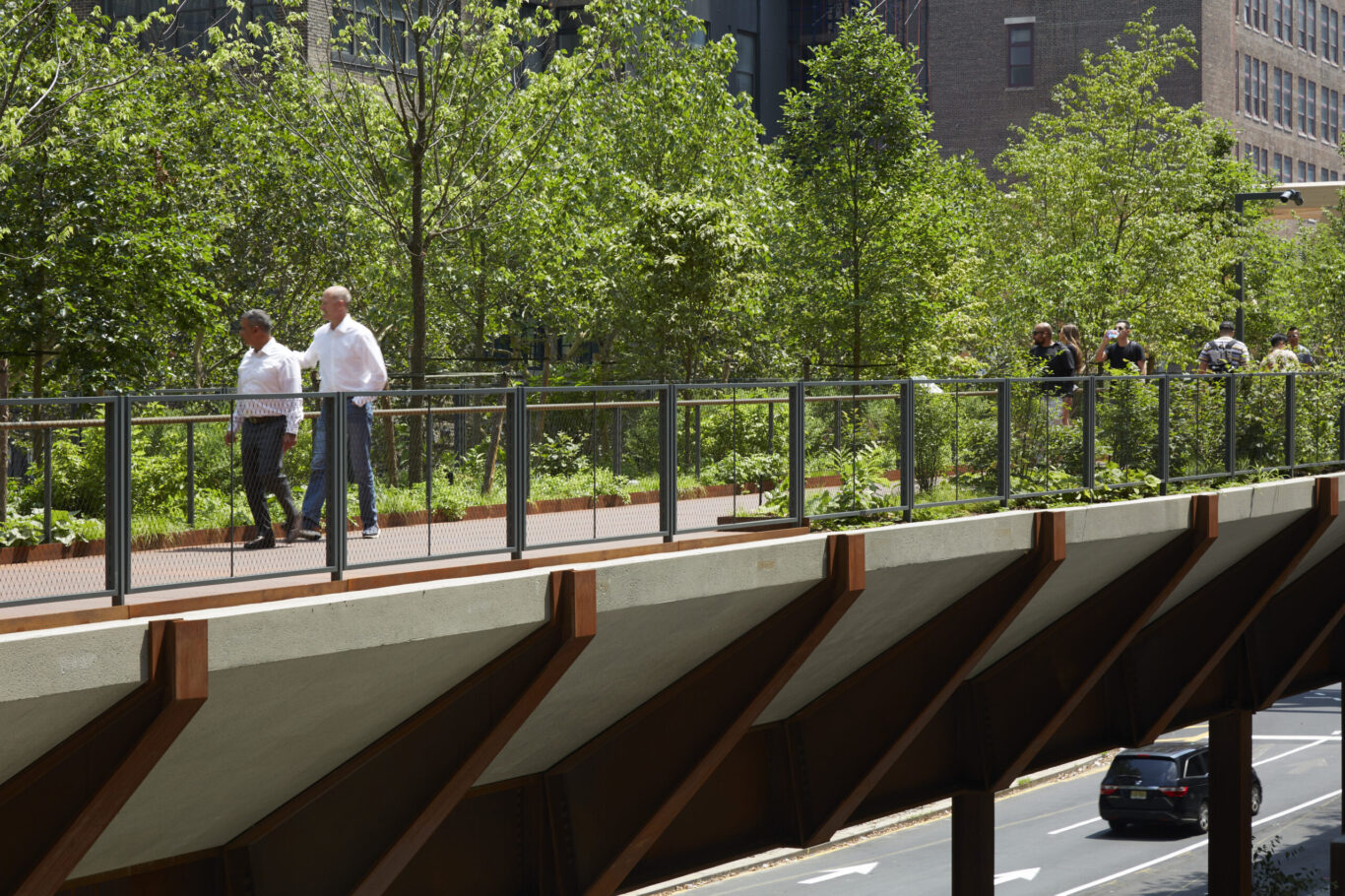

The 260-foot-long Timber Bridge, a warren truss made of sustainably sourced glulam wood, will offer an inviting space protected from the traffic emerging from the Lincoln Tunnel. This structural solution requires minimal connections to the ground, allowing the existing roads to remain undisturbed and maximizing the use of renewable materials. The Woodland Bridge, a 340-foot-long diagonal path lined with trees, will introduce the immersive landscaping of the High Line. Its extensive plantings will be enabled by a 5-foot-deep, precast concrete container filled with soil. This container will in turn rest on steel columns separated by wide spans at street level.

© SOM, JCFO | Miysis

Bringing the bridges together

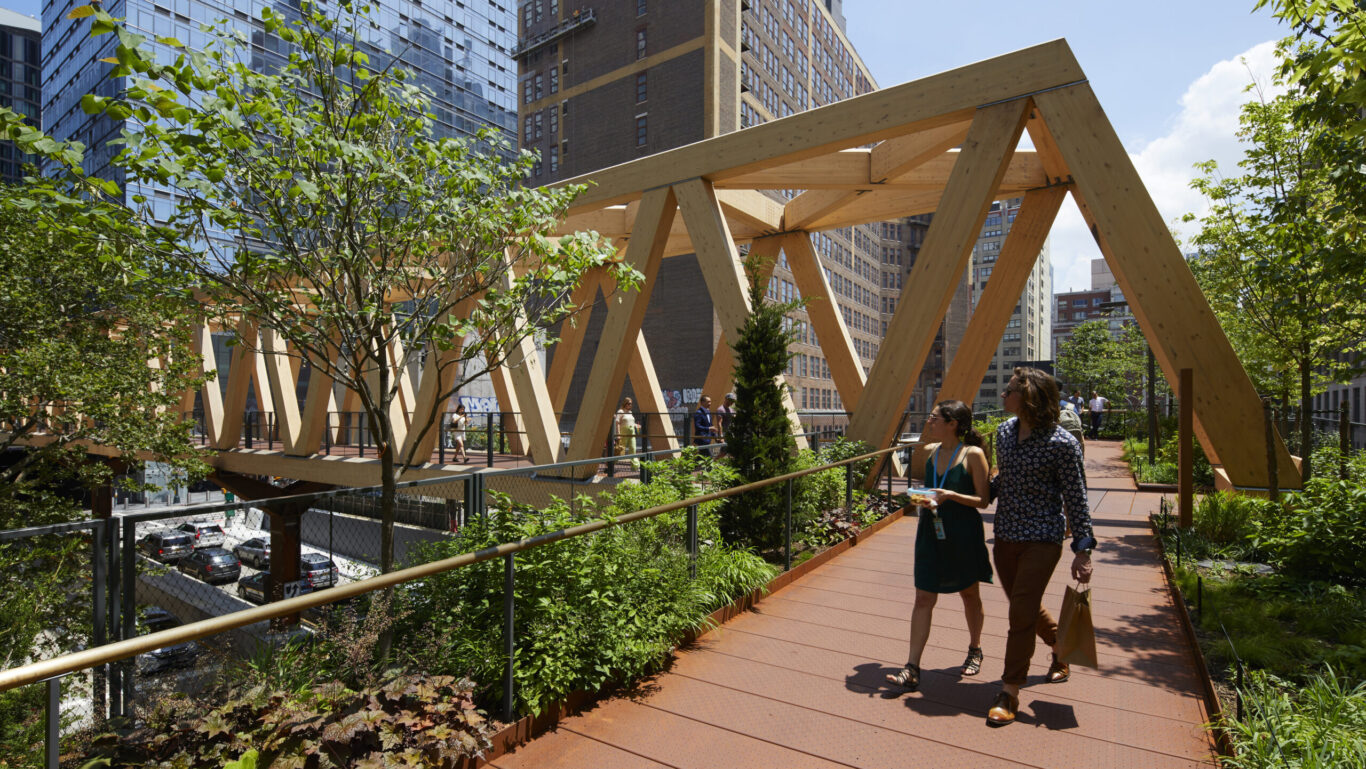

The two bridges are aesthetically united by Corten steel decking and bronze handrails, which will guide pedestrians between the structures. The design of the bridges provides direct connectivity between Magnolia Court and the Spur. The landscaping on the Woodland Bridge will arrange the trees from shortest to tallest trees from east to west, and in the reverse direction on the north and south side of the path. This arrangement will open views of the timber structure rising over the diagonal pathway, and create a visual link to the trees from Magnolia Court. This solution will establish a clear sense of place, and guide pedestrians to their destinations on both sides of the Connector.

The Connector is the fourth major SOM project in the neighborhood’s evolution. Between the design of Moynihan Train Hall and 35 Hudson Yards, and both the design and master plan for the 7-million-square-foot, mixed-use Manhattan West, SOM has played an essential role in reimagining a former industrial area into a vibrant destination.
